Networks & Firewall Rules

Networks define and address range and gateway ip

• Address ranges: 1.240.0.0/16
  • This has a 16 bit prefix, 65,535 possible unique ip adresses [2^16]
  • Gateway is 10.240.0.1

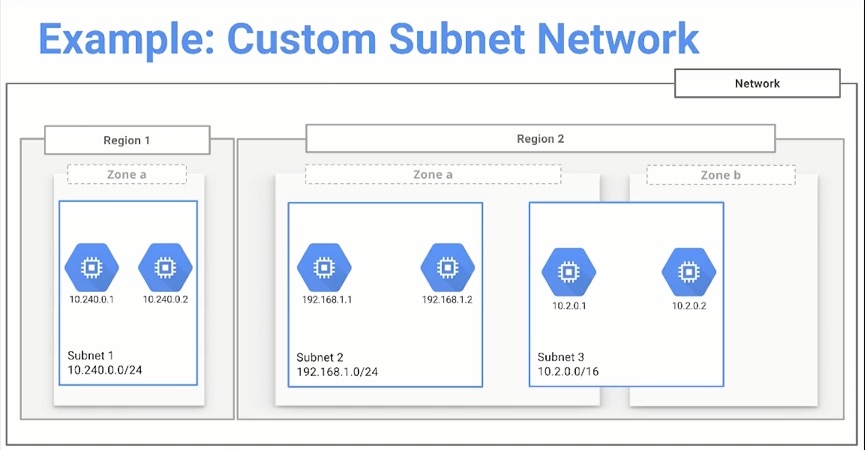

• Networks are subdivided into regional subnetworks
  • These define what subnetwork ip addresses will be

When looking at the default route rules it makes a set of rules for each region, what the ip ranges will be. It also creates a rule for internet access

Routes

• Controls how packets sent from instances
• Routes are global resources, not tied to a particular zone or region
• Requires:
  • Destination IP Range
  • Specified instance tag
  • Apply to only one network

Firewall Rules

• Rules ONLY apply to inbound traffic

• Initially, a default network has firewall rules that allow:

  • ICMP, RDP, and SSH
    • You can SSH into any instance
    • RDP to access windows VM's
    • Ping each instance from outside of the platform
  • Second Firewall Rule
    • TCP and UDP traffic on any port
    • ICMP for private address space inside the network

• Limiting traffic LEAVING instances

  • Need to configure something like IP tables
    • Installed on Debian images?

Allowing access for instances to access local private instances

• NEED TO ALLOW TCP ACCESS ON NECESSARY PORT

Default Firewall Rules

• default-allow-icmp
  • This is for being able to externally ping an instance
• default-allow-internal
  • Can communicate with other instances via internal ip addresses
• default-allow-rdp
  • Windows machines
• default-allow-ssh
  • Allow SSH access into linux machines

Instance IP Addresses

• Internal Address, mandatory
  • Ephemeral (dynamic) if not defined
  • User assigned during creation
• External Address
  • Internet accessable
  • EPHEMERAL by default
  • Can be changed to a static address
• Communication between instances inside of a network is done via internal addresses
  • If Instances are NOT in the same network they must communicate via external addresses

Network Management

Tags

• use tags to manage how firewall rules apply to instances
• Can be used to filter traffic source or destination

Connection to instances without external ip addresses

Bastion Host - jump host

• Single point of entry to a network containing instances with internal IP addresses

Other methods

• Configure a VPN - Connects on-premises network to Compute Engine network via IPsec connection
• Configure a NAT gateway - Machine that routes traffic to the internet on behalf of instances
